Home Page >  PRODUCT GROUPS > Standard Profiles > Angle Profiles >
PRODUCT GROUPS

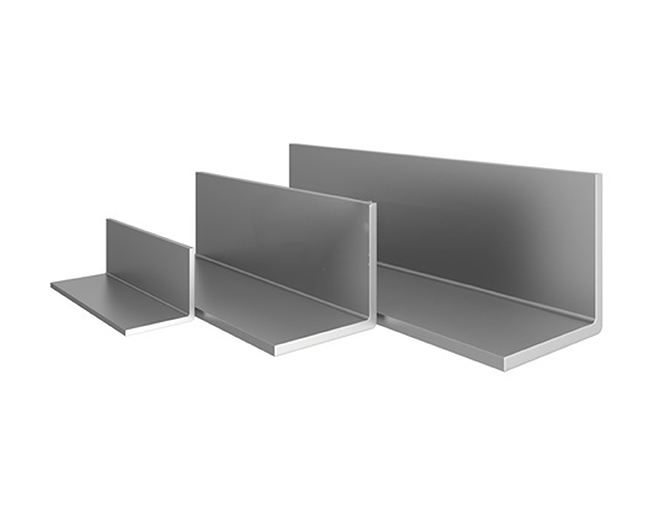

Angle Profiles

Angle Profiles Angle Profiles
Catalog - Brochure

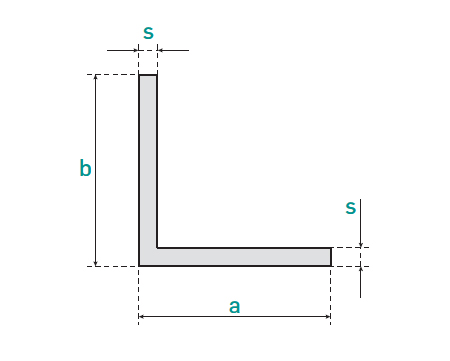

Var Profil No a/mm b/mm s/mm kg/m
- 2549 15 10 1,5 0,095
- 2373 15 15 1,5 0,116
* 1890 15 15 3 0.220
* 2470 18 18 2 0,184
- 2501 20 10 1,5 0,116
- 2374 20 20 1 0,105
- 2375 20 20 1,2 0,126
- 2376 20 20 1,4 0,146
* 4256 20 20 2 0,205
* 2466 20 50 2 0,368
* 4849 20 70 2 0,476
- 2521 25 15 1 0,106
* 2550 30 15 2 0,233
* 2622 25 25 2 0.260
* 1904 25 23 1,5 0,165
- 2513 25 25 1 0,133
- 2397 30 15 1,5 0,176
* 2377 25 25 1,5 0,197
* 2399 30 20 1,8 0,234
* 2546 30 20 2 0.260
* 2519 30 20 1,3 0,171
* 2514 30 30 1,3 0,206
* 2378 30 30 1,5 0,238
* 2593 30 30 2 0,314
* 2380 30 30 3 0,462
* 2400 35 8 1,5 0,168
- 2381 35 35 2 0,367
- 2504 40 10 2 0.260
* 2401 40 20 1,2 0,191
* 2515 40 20 1,5 0,239
* 2547 40 20 2 0,314
* 2566 40 20 2,5 0,390
* 4632 40 30 3 0,521
* 2384 40 40 1,5 0.320
* 2385 40 40 2 0,421
* 1274 40 40 2,5 0,521
* 2386 40 40 3 0,624
* 1980 40 40 5 1,016
* 2468 48 43 13,6 3,322
- 2404 50 20 1 0,187
* 2392 50 25 1,6 0,309
* 2393 50 25 1,8 0,347
* 2548 50 30 3 0,626
- 2390 50 50 2 0,529
* 2545 50 50 3 0,789
* 4165 50 50 4 1,040
* 1641 60 10 1,1 0,203
- 2406 60 20 1,5 0,318
* 1701 60 25 1,5 0,325
* 2505 60 25 2 0.450
* 2407 60 40 2 0,531
* 4300 60 50 4 1,149
* 2564 60 60 4 1,257
* 1618 69,5 8,3 1,5 0,307
* 1692 70 24 3,5 0,940
* 2408 70 50 3 0,951
* 2391 70 50 4 1,257
* 4068 75 50 5 1,626
* 2567 80 20 2,5 0,661
* 1693 80 27,5 3,5 0,978
* 2639 80 50 3 1,033
* 4301 80 50 4 1,366
* 2394 80 80 1,5 0,645
* 4464 90 90 10 4,607
* 2640 100 10 2 0,585
* 4314 100 30 2 0,694
* 2453 100 50 3 1,195
* 2452 100 50 4 1,583
* 4321 120 50 3 1,358
* 2456 120 50 4 1,799
* 2467 123 55 8 3,685
* 2460 150 50 4 2,125
* 5151 150 100 8 5,247
* 2462 180 50 4 2,500
* 2464 230 50 4 2,992
* 4318 250 50 5 3,997
