Arfen Aluminium Louvres System

Louvers that are an important part of the ventilation system,direct the air flow and ensure that the fresh air is distributed evenly throughout the environment.Thus, fresh air enters and dirty and humid air exits.  Today, there are many types of louvers designed according to the usage area and function.Louver type selection is made by taking into account the air intake capacities and gap ratios.

ARM Louver Systems is an aesthetic and functional system that is suitable for use in many projects such as hospitals, shopping malls, schools, public buildings, industrial facilities, airports, residental, easy to apply, contributing to the space with its appearance.

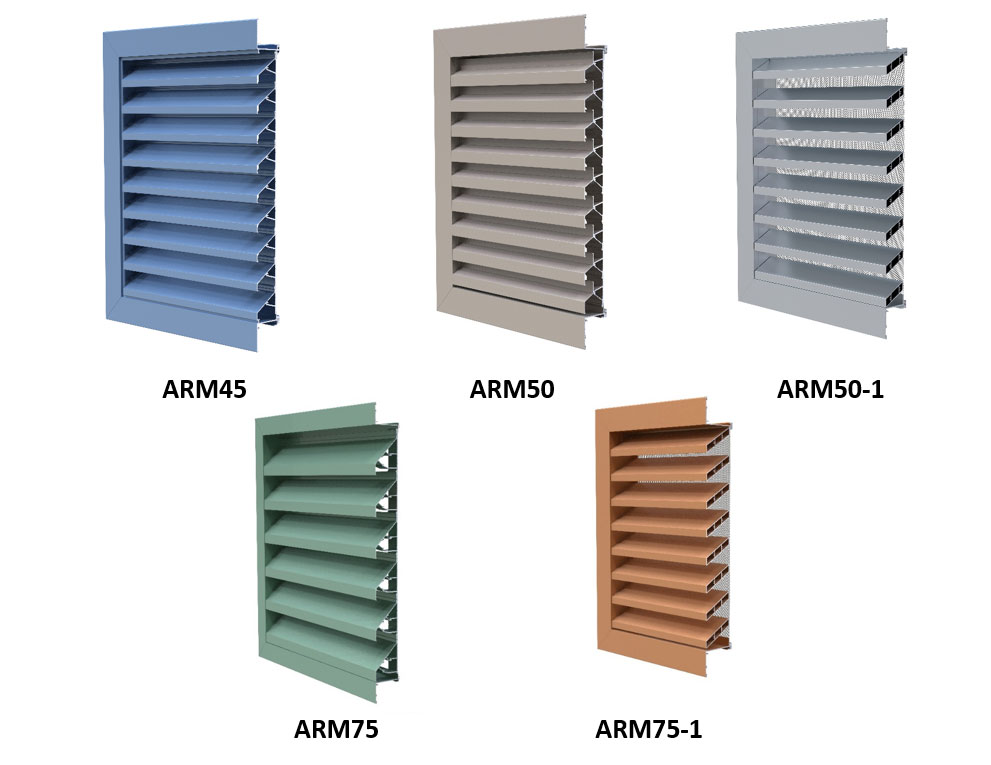

There are ARM45, ARM50, ARM50-1, ARM75, ARM75-1 and Louvre Door Systems have louvre types that can be served for different needs . Arfen products, which are coded according to the frame depth and wing type, are designed with the aim of responding to the demands that will occur in different spaces. Features such as aesthetic appearance, easy installation, durability and safety are our priority in our designs.

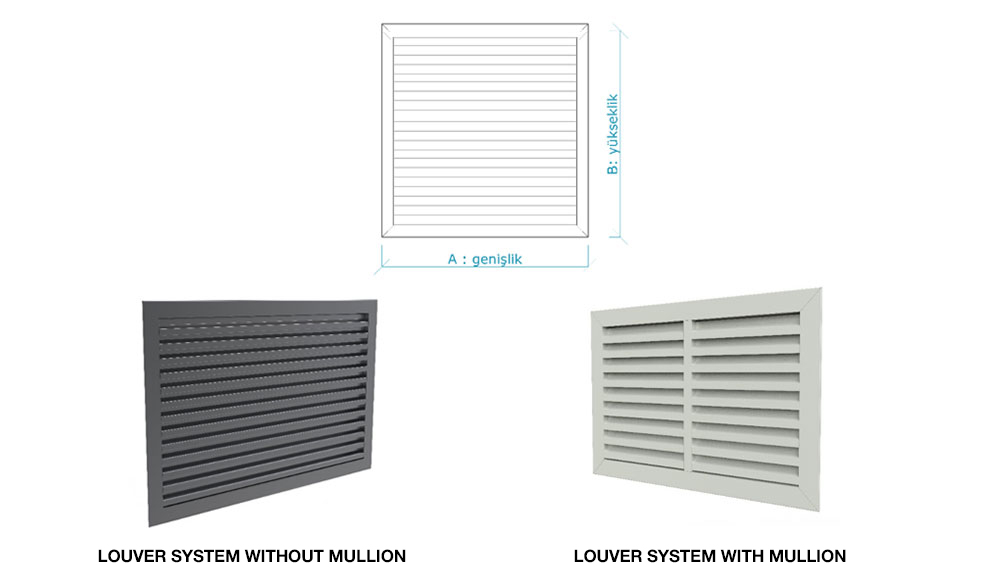

Arfen louver systems can be produced according to the desired width and height dimensions. The important thing is to know the A and B dimensions of the louver gap. The louvers can be produced without mullion, with mullions or in pieces according to the size of the gap to be applied. The louvers with an A dimension of less than 1 meter are produced without mullion, while the louvers with an A dimension of more than 1 meter are produced with mullion. The louvers are produced in pieces and assembled in the construction site environment for the models over 3.5 meters in size. Big size louvers can be easily shipped and easily assembled with this way.

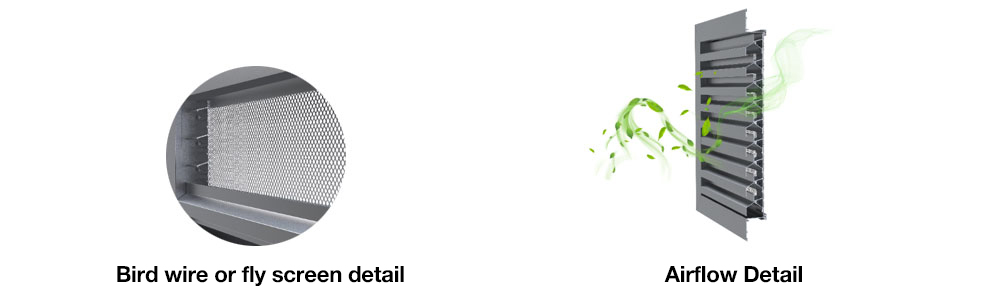

The system that consists of frame and louver profiles, made of 6063 T5 aluminum alloy can be produced in the desired RAL color option.  Louvre profiles can be assembled with screws or without screws are lined up to the frame profile that is assembled with screws. Among these types, the system connected with screws is defined as a fixed lamella louver, and the system produced with the logic of disassembly and assembly is defined as a movable lamella louver. By mounting wire in different options such as fly and bird wire behind the system, foreign objects such as insects and garbage are prevented from entering the interior. Finally, Arfen products are made ready for shipment with careful packaging.
