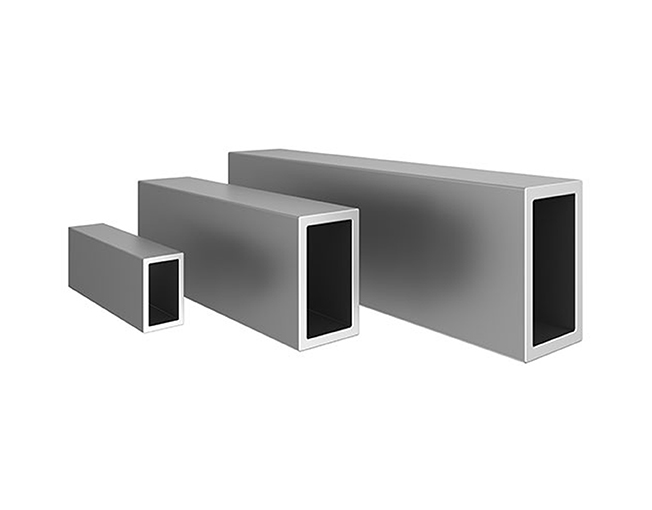

Rectangular Tube Profiles

Rectangular Tube Profiles Rectangular Tube Profiles
Catalog - Brochure
Var Profil No a/mm b/mm s/mm kg/m
- 2327 25 15 2 0,390
- 1688 30 5 1,2 0,211
* 2332 30 20 2 0,499
* 4219 40 20 1,5 0,463
* 2335 40 20 2 0,607
* 2540 40 26 2 0,672
* 2542 50 20 2 0,715
* 2341 50 30 2 0,824
* 4398 50 35 1,8 0,794
* 4088 50 40 2 0,932
* 2345 60 20 2 0,824
* 5073 60 40 1,1 0,583
* 5074 60 40 1,8 0,940
* 2346 60 40 2 1,041
* 2365 75 32 3 1,642
* 4208 75 50 3 1,935
* 2369 80 20 1,3 0,686
* 2121 80 20 2 1,041
- 5075 80 40 1,1 0,702
* 2349 80 40 1,5 0,951
- 2350 80 40 1,8 1,132
- 4218 80 40 2 1,257
* 2351 80 40 2 1,258
* 2128 80 60 2 1,474
* 4154 90 60 2,5 1,965
* 2352 100 25 2,5 1,626
- 2364 100 50 2 1,583
* 4958 100 50 4 3,079
* 2370 100 60 3 2,504
- 2363 120 40 4 3,295
* 5076 120 60 1,5 1,439
* 5077 120 60 2 1,908
* 2361 120 60 4 3,729
* 2336 150 20 2 1,799
* 4868 150 32 3 2,862
* 2357 150 50 2 2,125
* 2358 150 60 3 3,317
- 5028 150 75 5 5,827
- 4774 160 40 2 2,125
* 5827 200 90 5 7,588
